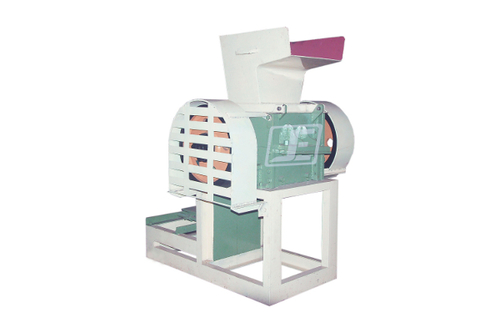

Woven Bag Road Waste Raffia Grinder

Get a Price/Quote

Product Details:

Operating Temperature Ambient
Machine Type Plastic Grinder
Power Rating 18.5 kW
Drive Belt Drive
Features High durability, energy efficient, easy maintenance
Production Capacity 350-500 kg/hr
Cooling System Water Cooling
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Woven Bag Road Waste Raffia Grinder Price And Quantity

Minimum Order Quantity 1 Unit

Overload Protection Yes
Collection Bin Capacity 250 Litres
Warranty Extension Optional up to 3 Years
Blade Material Alloy Steel, Hardened
Installation Space Required Approx. 2.5 x 2 m
Service Support Onsite Installation & Training
Packaging Type Stretched Film & Wooden Box
Feed Opening Size 400 x 500 mm
Maintenance Requirement Low
Number of Blades 6 Fixed + 4 Rotating
Safety Features Emergency Stop Button, Lockout System

Woven Bag Road Waste Raffia Grinder Product Specifications

Pressure Standard
Usage & Applications Grinding of waste woven bags, road waste, and raffia material
Production Capacity 350-500 kg/hr
Cooling System Water Cooling
Power Rating 18.5 kW
Operating Temperature Ambient
Machine Type Plastic Grinder
Drive Belt Drive
Power 25 HP
Features High durability, energy efficient, easy maintenance
Technology Mechanical Crushing
Surface Treatment Powder Coated
Color Blue & White
Operating Type Automatic
Weight (kg) 950 kg
Accuracy High
Product Type Woven Bag Road Waste Raffia Grinder
Frequency 50 Hz
Lubricating System Auto Lubrication
Noise Level Low
Model No RGR-1850
Power Source Electric
Frame Type Welded Steel
Motor Power 25 HP
Voltage 380 V
Dimension (L*W*H) 1850 x 1200 x 1550 mm
Plastic Processed PP, HDPE, LDPE Woven Bags

Overload Protection Yes
Collection Bin Capacity 250 Litres
Warranty Extension Optional up to 3 Years
Blade Material Alloy Steel, Hardened
Installation Space Required Approx. 2.5 x 2 m
Service Support Onsite Installation & Training
Packaging Type Stretched Film & Wooden Box
Feed Opening Size 400 x 500 mm
Maintenance Requirement Low
Number of Blades 6 Fixed + 4 Rotating
Safety Features Emergency Stop Button, Lockout System

Woven Bag Road Waste Raffia Grinder Trade Information

Supply Ability As per requirement Per Month
Delivery Time As per requirement Days

Product Description

Highly acclaimed in this global market, our company is the most trusted manufacturer and exporter of an excellent range of Woven Bag Road Waste Raffia Grinder. Widely used for grinding waste woven bags, these machines are offered to clients in varied models and specifications for meeting their individual requirements. Our highly experienced team uses premium quality components and materials for manufacturing this Woven Bag Road Waste Raffia Grinder in compliance with the industry standards.

Features:

Robust built
High tensile strength
User friendly control panel

WOVEN BAG ROAD WASTE RAFFIA GRINDER
No.	Model	Power Required	Throat Size	Quantity of Rotor Blade & Size		Quantity of Fix Blade & Size		Mesh Hole Size	Grinding capacity Per Hour


1	JE - 15" RG	15 HP	15" x 14.5"	3	15" x 5"	2	15" x 10"	100 x 150 MM	200 kg/hr
2	JE - 18" RG	20 OR 25 HP	18" x 15"	3	18" x 5"	2	18" x 10"	100 x 150 MM	300 kg/hr
3	JE - 21" RG	30 HP	21" x 15"	3	21" x 5"	2	21" x 10"	100 x 150 MM	400 kg/hr
4	JE - 21" RG (JUMBO)	50 HP	21" x 16.5"	3	21" x 5"	2	21" x 10"	100 x 150 MM	400 kg/hr
5	JE - 24" RG	50 HP	24" x 18"	6	12" x 5"	6	12" x 10"	100 x 150 MM	650 kg/hr
6	JE - 24" RG (JUMBO)	75 HP	24" x 18"	6	12" x 5"	6	12" x 10"	100 x 150 MM	650 kg/hr
NOTE: - Output is depend on your material size, thickness and hole of mesh.

Efficient Grinding for Plastic Waste Management

Designed to handle PP, HDPE, and LDPE woven bags as well as road waste and raffia materials, the RGR-1850 ensures robust mechanical crushing with minimal manual intervention. Its energy-efficient 25 HP motor, high capacity, and precise PLC-controlled operation cater to diverse recycling and industrial applications.

Integrated Safety and User-Friendly Operation

Operators benefit from multiple safety mechanisms, including an emergency stop button, lockout system, and overload protection. The automatic lubrication and water cooling systems help extend the machines lifespan while supporting hassle-free, low-maintenance operation.

Flexible Installation and Extended Service Support

With onsite installation and comprehensive training, users can get started quickly and safely. The compact dimensions require just a 2.5 x 2 m footprint, and extended warranty options provide peace of mind for long-term, intensive use.

FAQs of Woven Bag Road Waste Raffia Grinder:

Q: How does the Woven Bag Road Waste Raffia Grinder process waste materials?

A: The machine uses a combination of 6 fixed and 4 rotating alloy steel blades to mechanically crush and grind waste woven bags, road debris, and raffia at a capacity of 350-500 kg/hr. The material is fed through a large 400 x 500 mm opening into a PLC-controlled, automatic grinding chamber.

Q: What types of plastic can be processed with this grinder?

A: It is designed to efficiently process PP, HDPE, and LDPE woven bags as well as various road waste and raffia materials, making it ideal for plastic recycling facilities and waste management companies.

Q: Where should the RGR-1850 be installed for optimal performance?

A: The grinder requires an installation space of approximately 2.5 x 2 meters. It should be placed in a well-ventilated area with access to a stable 380 V electrical supply and water for cooling, ensuring safe and continuous operation.

Q: What are the key safety features of this machine?

A: Operator safety is prioritized with an emergency stop button, lockout system, and built-in overload protection. These features ensure immediate shut-off and prevent accidental startups during maintenance or in hazardous conditions.

Q: What is included in the service and support for this grinder?

A: Comprehensive onsite installation and training are provided to ensure correct setup and safe operation. Optional warranty extension of up to 3 years offers additional support for maintenance and repairs.

Q: How often does the machine require maintenance?

A: Thanks to its auto-lubricating system, water cooling, and robust construction, maintenance requirements are low. Regular inspection of blades and routine cleaning will keep the machine at peak efficiency.

Q: What are the benefits of choosing this grinder for your recycling needs?

A: The RGR-1850 offers high accuracy, energy efficiency, user-friendly operation, strong safety mechanisms, and low noise levels. Its high durability and low maintenance contribute significantly to waste management productivity and operational cost savings.
